• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Door locks, power includes Remote Keyless Entry
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote Keyless Entry with 2 transmitters, panic button and content theft alarm
• Seat adjuster, manual lumbar control on the driver-side
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• XM Radio (subscription required)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, front disc/rear drum
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Fleetside
• Recovery hooks, front, frame-mounted (Standard on 4WD Models.)
• Steering, power, rack-and-pinion
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic
• Transfer case, electronic Autotrac with rotary dial controls (Requires 4WD models.)

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar Equipped (subscription required)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control
• Tire Pressure Monitoring System (does not apply to spare tire)

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED ($0)

• with overdrive and tow/haul mode (STD)

LICENSE PLATE BRACKET, FRONT ($15)

• (will be forced on orders with ship-to states that require a front license plate)

POWER PACK PLUS ($1,525)

• includes (LY5) Vortec 5.3L V8 SFI engine
• (LH6) Vortec 5.3L V8 SFI engine
• (LC9) Vortec 5.3L V8 SFI FlexFuel engine or (LMG) Vortec 5.3L V8 SFI FlexFuel engine
• (G80) heavy-duty automatic locking rear differential
• (Z82) Trailering package and (N56) 4-17" x 7.5" (43.2 cm x 19.1 cm) 6-lug custom aluminum wheels

AIR CONDITIONING, SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL ($0)

• (STD)

WHEELS, 4-18" X 8" (45.7 CM X 20.3 CM) ALUMINUM ($295)

• (spare wheel will not cosmetically match the other 4 wheels)

GVWR, 7000 LBS. (3175 KG) ($0)

• (STD)

TRAILERING PACKAGE, HEAVY-DUTY ($675)

• includes trailering hitch platform and 2-inch receiver
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• wiring harness for after-market trailer brake controller (located in the instrument panel harness)
• and single wire for center high-mounted stop lamp
• (G80) heavy-duty automatic locking rear differential and (KNP) external transmission oil cooler

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER ($0)

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

SUSPENSION PACKAGE, OFF-ROAD ($275)

• includes 1.81" (46 mm) shocks
• off-road jounce bumpers
• 34mm front stabilizer bar
• (NZZ) Skid Plate Package
• (V76) recovery hooks
• (K47) air cleaner and Z71 decals on rear quarters

LT PREFERRED EQUIPMENT GROUP ($0)

• includes standard equipment

SKID PLATE PACKAGE ($150)

• frame-mounted shields
• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

REMOTE VEHICLE STARTER SYSTEM ($0)

• includes Remote Keyless Entry

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING ($1,075)

• center fold-down armrest with storage
• lockable storage compartment in seat cushion (includes auxiliary power outlet)
• adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)

EXTERIOR PLUS PACKAGE ($705)

• includes (AP3) remote vehicle starter system
• (UG1) Universal Home Remote
• (A60) locking tailgate
• (PPA) EZ-Lift tailgate and (T96) fog lamps

TIRES, P265/65R18 ON-/OFF-ROAD, WHITE OUTLINED-LETTER ($150)

• includes all-season 17" spare

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT ($0)

• capable of running on unleaded or up to 85% ethanol
• (315 hp [234.9 kW] @ 5200 rpm
• 338 lb-ft of torque [456.3 N-m] @ 4400 rpm)
• iron block

• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• UNIVERSAL HOME REMOTE
• POWER PACK PLUS includes (LY5) Vortec 5.3L V8 SFI engine (LH6) Vortec 5.3L V8 SFI engine (LC9) Vortec 5.3L V8 SFI FlexFuel engine or (LMG) Vortec 5.3L V8 SFI FlexFuel engine (G80) heavy-duty automatic locking rear differential (Z82) Trailering package and (N56) 4-17" x 7.5" (43.2 cm x 19.1 cm) 6-lug custom aluminum wheels
• DEFOGGER REAR-WINDOW ELECTRIC
• AIR CONDITIONING SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL (STD)
• WHEELS 4-18" X 8" (45.7 CM X 20.3 CM) ALUMINUM (spare wheel will not cosmetically match the other 4 wheels)
• SEAT ADJUSTER DRIVER 6-WAY POWER
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• GVWR 7000 LBS. (3175 KG) (STD)
• REAR AXLE 3.73 RATIO
• TRAILERING PACKAGE HEAVY-DUTY includes trailering hitch platform and 2-inch receiver 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and single wire for center high-mounted stop lamp (G80) heavy-duty automatic locking rear differential and (KNP) external transmission oil cooler
• TAILGATE EZ-LIFT
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• SUSPENSION PACKAGE OFF-ROAD includes 1.81" (46 mm) shocks off-road jounce bumpers 34mm front stabilizer bar (NZZ) Skid Plate Package (V76) recovery hooks (K47) air cleaner and Z71 decals on rear quarters
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE POWER-FOLDING AND DRIVER-SIDE AUTO-DIMMING WITH INTEGRATED TURN SIGNAL INDICATORS
• PAINT SOLID
• BLACK
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• SKID PLATE PACKAGE frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• FOG LAMPS FRONT HALOGEN
• TAILGATE LOCKING
• REMOTE VEHICLE STARTER SYSTEM includes Remote Keyless Entry
• LIGHT TITANIUM/EBONY LEATHER-APPOINTED SEAT TRIM
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING center fold-down armrest with storage lockable storage compartment in seat cushion (includes auxiliary power outlet) adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)
• EXTERIOR PLUS PACKAGE includes (AP3) remote vehicle starter system (UG1) Universal Home Remote (A60) locking tailgate (PPA) EZ-Lift tailgate and (T96) fog lamps
• TIRES P265/65R18 ON-/OFF-ROAD WHITE OUTLINED-LETTER includes all-season 17" spare
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• ENGINE VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT capable of running on unleaded or up to 85% ethanol (315 hp [234.9 kW] @ 5200 rpm 338 lb-ft of torque [456.3 N-m] @ 4400 rpm) iron block
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Power Outlet
• A/C
• Driver Adjustable Lumbar
• Rear Bench Seat
• Floor Mats
• Leather Steering Wheel
• Power Windows
• Power Windows
• Keyless Entry
• Power Door Locks
• Security System
• Keyless Entry
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• Power Outlet
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Adjustable Steering Wheel
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.9
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3175
• Curb Weight - Rear (lbs): 2088
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 13000
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1125
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1875
• Maximum Trailering Capacity (lbs): 10400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QXQ
• Front Tire Order Code: QVL
• Rear Tire Order Code: QXQ
• Rear Tire Order Code: QVL
• Spare Tire Order Code: - TBD -
• Spare Tire Order Code: QVL
• Front Tire Size: P265/65R18
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/65R18
• Rear Tire Size: P265/70R17
• Spare Tire Size: - TBD -
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2244
• Front Tire Capacity (lbs): 2304
• Rear Tire Capacity (lbs): 2244
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.73
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.2
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 73.7
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 141.4
• Cab to Axle (in): 41.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 11.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.5
• Cargo Box Width @ Floor (in): 62.4
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 39.2
• Second Leg Room (in): 34.3
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61.9
• Summary

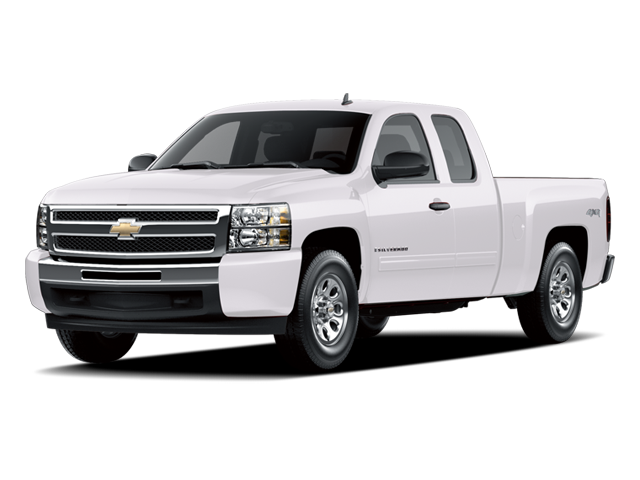

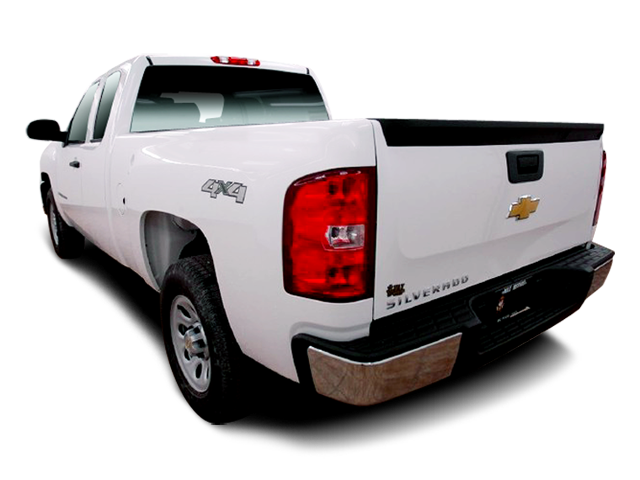

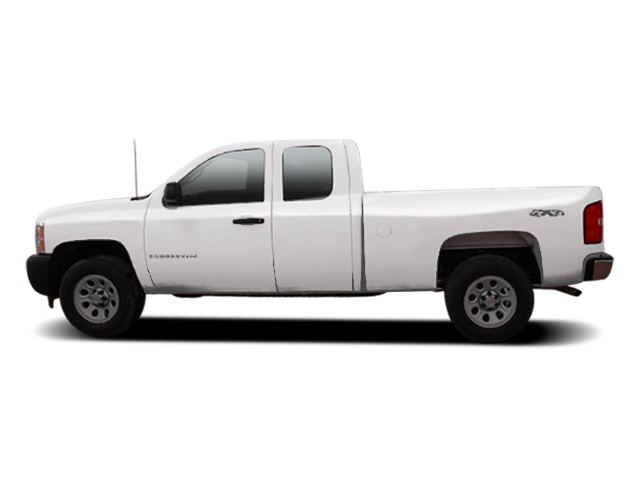

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Ext Cab 6.5' Wideside
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 3
• EPA Greenhouse Gas Score: 2
